Standard: ISO2531，EN545, ASTM，AWWA C219
Pressure: PN10/PN16/PN25/PN40/PN64
Body material: Ductile iron or cast iron
Coating: FBE ( fusion bonded epoxy) coating or Epoxy painting, Rilsan（Nylon 11）
Gaskets: NBR or EPDM
Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, SS304/SS316 or Hot dipped

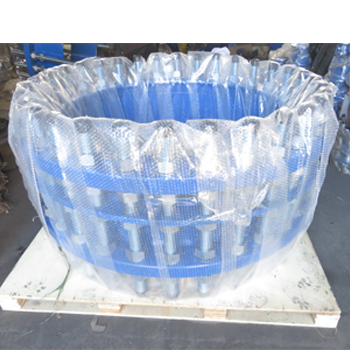

Package: wooden cases and protection layer.
Application:

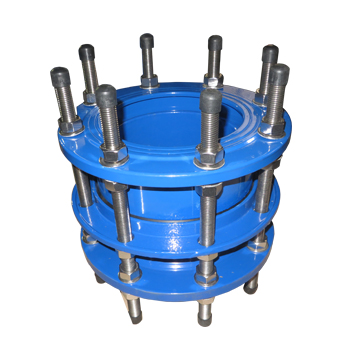

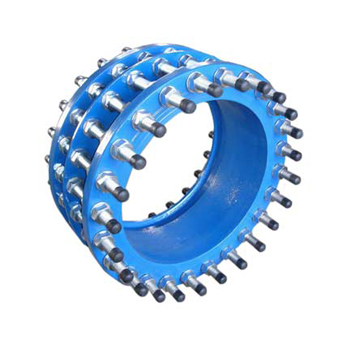

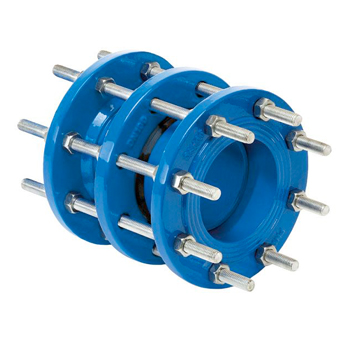

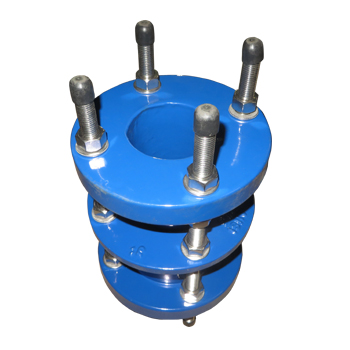

Dismantling joint is suitable for all flanged piping materials above ground or in chamber.
It enables easy installation and dismantling of isolating valves, non return valves, flow metering equipment , pumps etc. It compensates for axial displacement of the pipe during installation.
If you want to know more details, please send an email to us to sxsolidxin@aliyun.com. |
