Product Name:

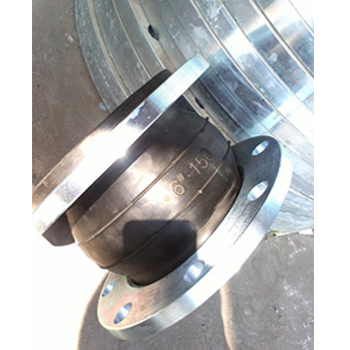

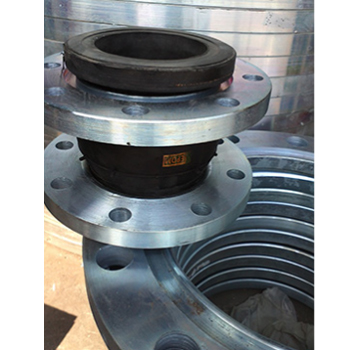

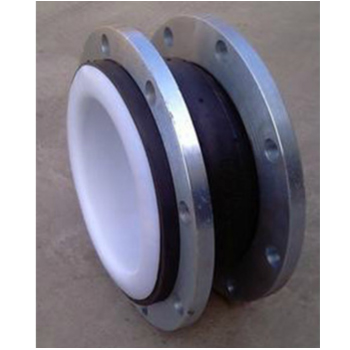

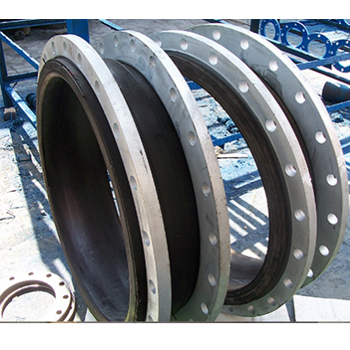

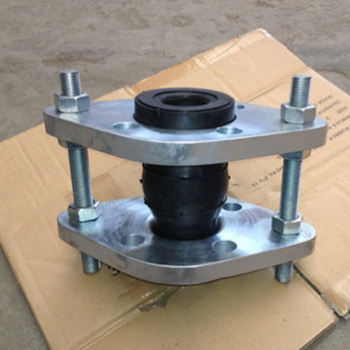

Rubber Expansion Joints
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
  • Double Orifice Air Valve
Describe:

Item

Specification

Operating condition

PN: 1.0/1.6/2.5 Mpa

The water temperature

up to 120℃

Material

EPDM/NBR/NR body with Carbon steel flange

Size

DN20-DN3000

Structure

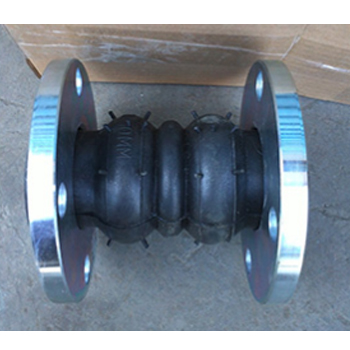

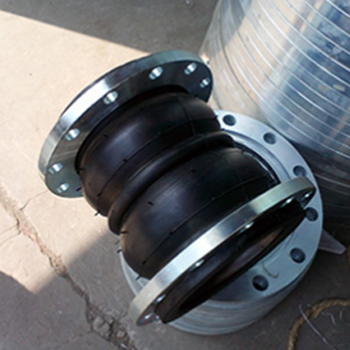

Single Sphere, Double Sphere or more

Standard of Flange

BS, DIN, ANSI, JIS or others provided drawing samples

Media

Hot Air, SO2, Steam, Water, Oil, Acid, Gas And etc.

Threads

DIN, BSPT, BSP, NPS, NPT, Metric, (ISO7/1, DIN 2999, ANSI B1.20.1)

Surface

Galvanized, Epoxy


Application:

The joint could primarily reduce the quiver and the noise of the piping system; completely solve the different piping problems as displacement of joint, axial flex and etc.

Features: Improve the flow circulation and avoid the bellow deformation. Absorbs thermal expansion and shock. Structure: bellows + flat welding flanges. Main material: Compensates converting misalignment Bellows: stainless steel 304. Flanges: stainless steel 304 or carbon steel. Compensates for exhaust converter misalignment.


Packing:

Carton + pallet.


If you want to know more details, please send an email to us to sxsolidxin@aliyun.com.
